S1 sub-boiling acid purifier

Laboratory Support Equipment

Acid Purifiers PreeKem

Information

Brand new S1 sub-boiling acid purifier adopts classic sub boiling distillation mode to achieve dynamic balance between heat radiation and the speed of evaporation automatically.

The user friendly intelligent structure design enhances the operation experience and enables total automatic control inside fume hood. The main body of the instrument is made of high purified PTFE which eliminates the contamination possibility from the usage of Quartz or metal accessories.

It can be applied in continuously purifying HNO3, HCL, HF and water and decrease the metal residue from 1ppb level to 10 ppt level during the purification. The instrument is free from consumables, easy for maintenance and low operation power consumption.

S1 sub-boiling acid purifier

S1 sub-boiling acid purifier Advantages

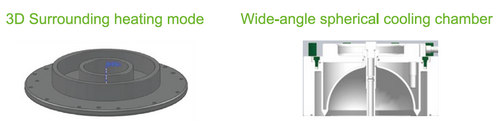

3D energy focus heating mode improves heating efficiency and uniformity.
Optimized large spherical condensing chamber increases the cooling efficiency and achieves higher yield.
Direct to bottom feed channel for acid adding helps to eliminate cross containmination.
Intuitive software design contains ready-to-use method library and real-time temperature curve display.

Innovation in the S1 sub-boiling acid purifier

Six safety guard to ensure safe operation

Automatic temperature control system helps to maintain working temperature.

Over-heating protection device to prevent dry burning.

Sensitive pressure regulation valve to relief over pressure automatically.

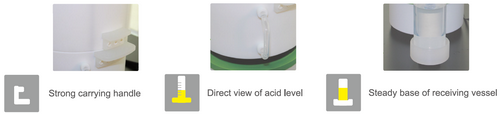

Stable handles to enhance operation mobility and convenience.

Direct liquid level observation.

Stable base design in receiving area to prevent dumping.

S1 sub-boiling acid purifier Parameters

Power supply:	220V-240V/50Hz, 5A
Entire output power:	350 W
Heating power:	300 W
Maximum working temperature:	200 ℃
Heating method:	Hot plate
Cooling method:	cold water
Volume:	0.5 L — 2 L
24h acid yield:	HNO3 1.8 L；HCL 1.6 L；HF 1.5 L； H2O 2.0 L
Collecting bottle volume:	500 mL
Distillation speed:	1.25 mL/min
Size:	361 mm × 360 mm × 400 mm
